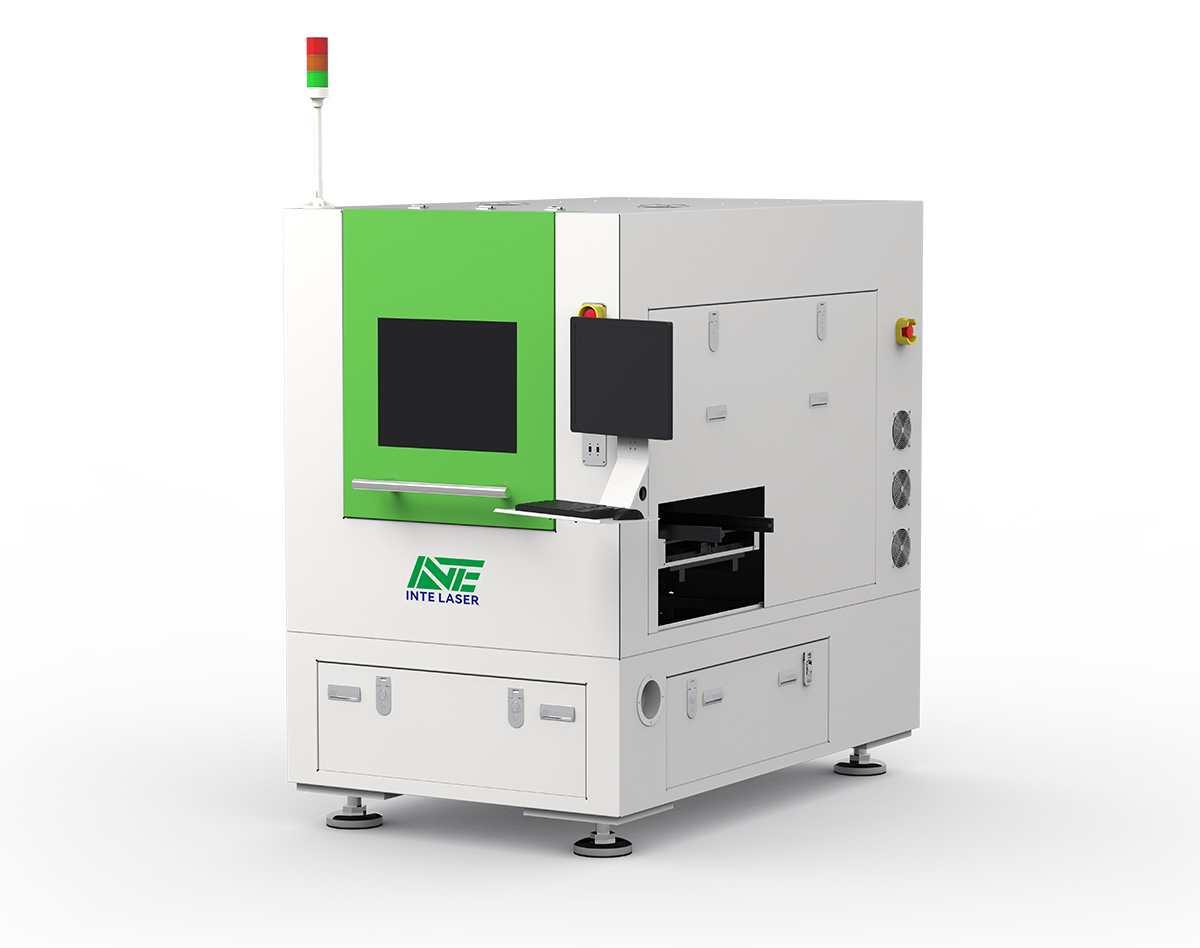

In electronics manufacturing, separating assembled PCBs/FPCs into individual boards (depaneling) is a critical step—but it’s also high-risk. Traditional mechanical depaneling (like router cutting or blade splitting) uses physical force, often causing micro-cracks in boards or damaging tiny components (e.g., resistors, chips) soldered on the surface. This leads to costly reworks and low yield rates. Automatic Laser Depaneling Equipment changes the game: its non-contact laser cutting technology ensures precise depaneling while keeping board components intact, becoming a must-have for manufacturers prioritizing quality and efficiency. Let’s explore its real-world applications and answer common questions.
Core Application Industries & Scenarios
Consumer Electronics Manufacturing
Consumer electronics (smartphones, tablets, wearables) use dense PCBs with miniaturized components—even a 0.02mm shift during depaneling can break a chip. Automatic Laser Depaneling Equipment excels here: it cuts PCBs with ±0.005mm precision, and its non-contact design avoids mechanical stress. For example, a smartphone maker previously used router depaneling, which caused a 4% component damage rate and took 1.5 hours to process 5,000 PCBs. With laser equipment, the same batch is done in 45 minutes, and component damage dropped to 0.05%. It also handles flexible FPCs (used in phone screens) without bending or tearing, preserving the FPC’s flexibility.
Automotive Electronic Production
Automotive electronics (ECUs, sensors, infotainment systems) demand high reliability—damaged components can lead to vehicle malfunctions. Automatic laser depaneling equipment meets this strict standard: it cuts automotive-grade PCBs (resistant to high temperatures and vibration) while protecting surface-mounted components (e.g., GPS modules). A car electronics supplier reported that after adopting the equipment, their depaneling yield rate rose from 94% to 99.7%, and they saved 30% on rework costs. The equipment’s automatic feeding system also supports 24/7 operation, matching the high-volume production needs of the automotive industry.
Medical Device Manufacturing
Medical devices (patient monitors, diagnostic tools) use PCBs with sensitive components (e.g., microprocessors for data analysis). Mechanical depaneling’s physical force often disrupts these components, risking device failure. Automatic laser depaneling equipment solves this: its low-heat laser cutting avoids thermal damage to components, and its dust-free operation complies with medical industry hygiene standards. A medical device manufacturer noted that the equipment reduced their PCB depaneling-related product recalls from 2 cases per year to zero, while cutting processing time for 2,000 medical PCBs from 8 hours to 2.5 hours.
Frequently Asked Questions (FAQ)
Q: Can the equipment handle both rigid PCBs and flexible FPCs?
A: Yes! It’s fully adaptable. For rigid PCBs, it uses a high-power laser with adjustable focus to cut through board materials (FR-4, aluminum-based) without damaging components. For flexible FPCs, it switches to a low-power, high-frequency laser to avoid tearing the flexible substrate—you just select the “PCB” or “FPC” mode on the touchscreen, no hardware changes needed.
Q: How does the equipment protect tiny components (e.g., 0.1mm resistors) during cutting?
A: It uses two key technologies: first, a high-resolution camera that maps component positions, so the laser automatically avoids cutting near component pads. Second, a low-heat laser beam (with a diameter as small as 0.003mm) that minimizes thermal spread—components stay at room temperature during cutting, no risk of overheating or soldering failure.
Q: Is it hard to integrate the equipment into existing production lines?
A: Not at all. It has a modular design that fits standard production line widths (1.2m–1.5m) and connects to ERP systems via Ethernet. Workers only need 1 day of training to master basic operations (e.g., setting cutting paths, loading boards), and advanced functions (e.g., custom cutting patterns) take just 1 additional training session. It’s plug-and-play for most electronics manufacturing lines.
A high-tech enterprise specializing in automated precision laser equipment provides reliable automatic laser depaneling solutions, with strict quality control to ensure component protection and precise cutting for manufacturers across sectors.
