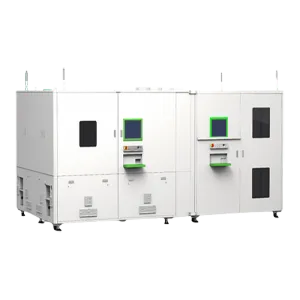

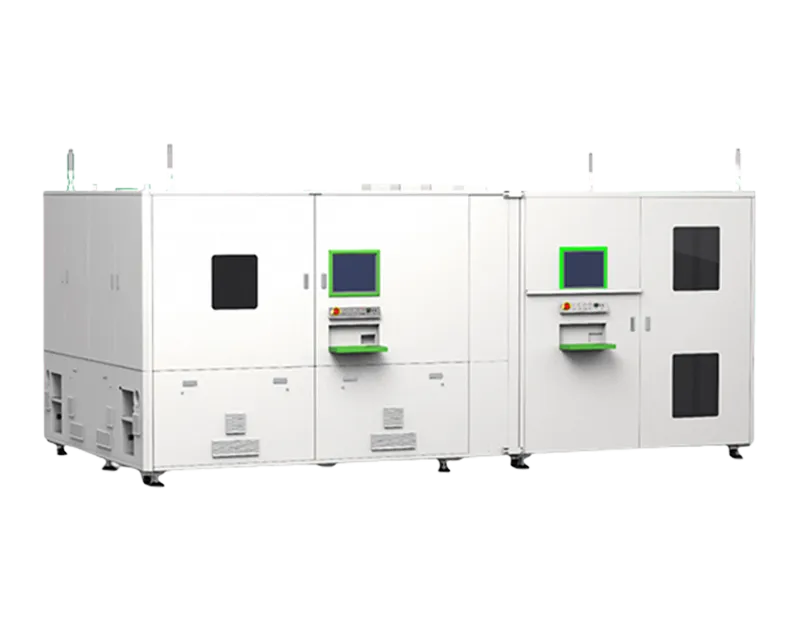

With the increasing demand for precision and automation in semiconductor, new energy, PCB/FPC, and microelectronic manufacturing, traditional mechanical or chemical delamination methods can no longer meet the industry’s requirements for efficiency, cleanliness, and yield. Inte Laser’s fully automated laser delamination solution provides a non-contact, high-accuracy, and eco-friendly alternative that enhances production stability and overall equipment efficiency.

Working Principle

This machine utilizes a high-energy pulsed laser to selectively remove the passivation layer without damaging the underlying substrate. Through intelligent optical control and precision scanning, the laser beam performs localized heating, vaporizing, or ablating the surface material layer-by-layer with micron-level precision.

The system integrates multi-axis motion platforms, real-time CCD visual alignment, and automatic focusing to ensure consistent processing quality across the entire workpiece. The combination of advanced galvo scanning technology and ultra-stable servo systems guarantees both processing speed and accuracy, making it ideal for large-scale production environments.

Key Features and Advantages

Full Automation – From loading to unloading, all processes are automatically controlled, significantly reducing manual intervention and ensuring high repeatability.

High Precision Delamination – Laser positioning accuracy reaches the micron level, enabling precise passivation layer removal without damaging delicate substrates.

Contact-Free Process – The laser delamination is non-mechanical and non-destructive, avoiding micro-cracks or contamination that may occur in physical or chemical processing.

High Throughput and Stability – Optimized scanning algorithms and intelligent motion paths deliver faster cycle times and stable production for continuous operation.

Environmentally Friendly – No chemical solvents or waste are generated, reducing environmental impact and complying with green manufacturing standards.

Modular Design – Easily configurable modules for different material types and thicknesses; supports flexible upgrades and customized solutions.

Smart Vision System – Integrated CCD vision detection and automatic calibration ensure alignment accuracy and consistent processing quality.

Energy Efficiency and Cost Saving – Low energy consumption per unit and minimal maintenance requirements reduce operational costs over time.

Advantages

Comprehensive graphical function for line drawing, withreal-time adjustment of alignment and dash-to-gap ratio;

Excellent beam quality and multi-pulse processing for supe-rior delamination results;

High-speed and large-format scanning system, compatible with larger-sized battery cells;

Separation of main unit and loading/unloading mechanism,offering flexible online/offline options;

Option for manual or AGV automated loading and unloading.

Technical Parameters

Sample Display

Applications

The Fully Automated Laser Passivation Layer Delamination Machine is suitable for a wide range of industrial applications, especially in sectors that demand ultra-fine laser processing:

Semiconductor manufacturing – precision delamination of wafer passivation layers

New energy battery industry – electrode surface treatment and protective film removal

FPC/PCB production – removing coating or insulating layers before soldering or assembly

Microelectronics and MEMS devices – micro-level surface structuring and coating removal

Optoelectronic components – precise film stripping on glass, sapphire, or filter substrates

Camera modules and sensors – passivation delamination for sensor chips and optical devices

Its advanced automation and high-speed capability make it especially suitable for mass production environments, helping enterprises improve yield rates, reduce manual errors, and achieve smart manufacturing goals.

Technology and Innovation

The development of this equipment is backed by Inte Laser’s independent R&D capabilities. The company’s engineering team continuously upgrades optical design, motion control, and software systems to maintain leading performance in laser micromachining, scribing, etching, and cutting technologies.

The machine adopts industrial-grade lasers, precision linear motors, and high-resolution control software to achieve consistent beam quality and energy output. Its intelligent software interface supports multi-language operation, real-time monitoring, and data recording, allowing seamless integration with MES production management systems.

This ensures that users can achieve high traceability, data-driven quality control, and predictive maintenance, improving both efficiency and reliability.

Quality and Reliability

At Inte Laser, product quality is the foundation of development. The Fully Automated Laser Passivation Layer Delamination Machine is manufactured under strict assembly and inspection standards. Each unit undergoes multiple rounds of precision testing, optical calibration, and performance validation before shipment.

Advanced diagnostic software continuously monitors laser power, temperature, vibration, and beam path status during operation. Any anomaly triggers automatic adjustment or alerts, ensuring long-term stability and consistent processing results.

With its robust mechanical structure, anti-vibration platform design, and stable laser source, the equipment guarantees extended service life and reduced maintenance intervals.

Customer Benefits

Improved Product Yield: The precision laser delamination process minimizes material waste and rework.

Reduced Operating Costs: Automation reduces labor dependency and production downtime.

Enhanced Cleanroom Compatibility: Non-contact laser processing is suitable for dust-free environments.

Faster ROI: High throughput and low maintenance contribute to a quick return on investment.

Scalable Manufacturing: Supports flexible production lines for various materials and sizes.

After-Sales Service and Technical Support

Inte Laser provides comprehensive global after-sales and technical support to ensure customers get the best performance from their equipment. The company maintains professional service outlets and remote support systems in major industrial cities, offering:

On-site installation and training

Remote software updates and maintenance

Spare parts supply and system upgrades

24/7 online technical assistance

With a customer-first philosophy, Inte Laser ensures that every client receives timely, efficient, and professional service to achieve long-term operational success.

Why Choose Inte Laser

As a high-tech enterprise integrating R&D, production, sales, and after-sales service, Inte Laser has earned an excellent reputation for delivering innovative, reliable, and cost-effective laser solutions. Backed by multiple invention patents and extensive industry experience, the company continues to lead the field of automated high-precision laser equipment.

By choosing the Fully Automated Laser Passivation Layer Delamination Machine, customers gain access to a cutting-edge, sustainable, and future-ready solution designed to meet the demands of smart manufacturing and Industry 4.0.
